RF20

$15.14
Stock Quantity: 10
SKU
RF20

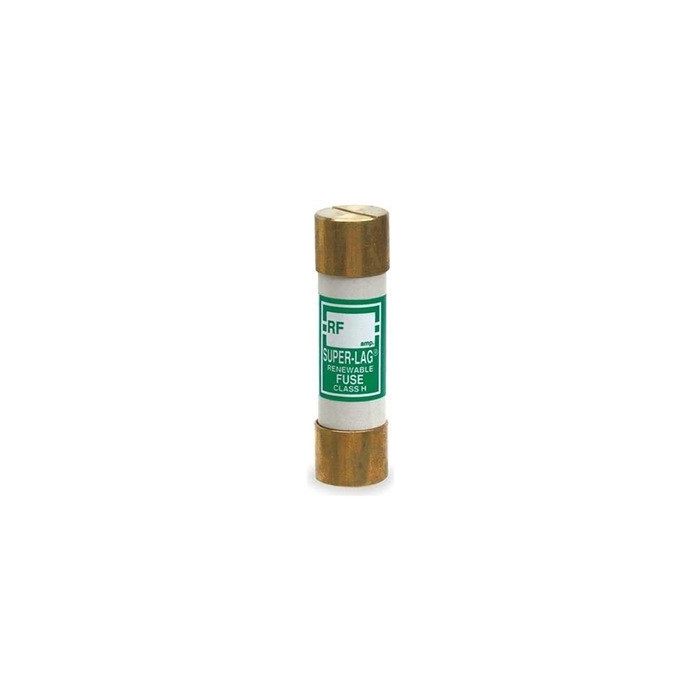

RF 20 Amp, 250V, Class H, Ferraz RF20, RF 20A | aka: Mersen RF20, Ferraz Shawmut RF20, UPC: 068938720094
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

RF 20 Amp, 250V, Class H, Ferraz RF20, RF 20A | aka: Mersen RF20, Ferraz Shawmut RF20, UPC: 068938720094


Description:

  • 20 Amps, 250 Volts AC
  • Renewable Fuses
  • Class H
  • Non-Current Limiting
  • Equivalent to Buss REN Style
  • Physical Size: 9/16" x 2"
  • General Purpose Fuse
  • Knurled Bushings for East of Disassembly
  • Rugged Construction for Maximum Service Life
  • 32 Renewable Link Ratings
  • Interrupting Rating: 10,000 AIC @ 250VAC
  • Precision Die-Cut Renewal Links
  • Renew Quickly and Give Repeatable Performance

  • Related Products:

  • Fuse Blocks
  • Non-Spring Reinforced Box Lugs (Al/Cu #2-14)
  • Adder: 20300 1 Pole: 20301 2 Pole: 20302 3 Pole: 20303
  • Spring Reinforced Box Lugs (Al/Cu #2-14)
  • Adder: 20305 1 Pole: 20306 2 Pole: 20307 3 Pole: 20308
  • Non-Spring Reinforced Screw Connector (Cu #10-14)
  • 1 Pole: 20311 2 Pole: 20312 3 Pole: 20313
  • Spring Reinforced Screw Connector (Cu #10-14)
  • Adder: 20315 1 Pole: 20316 2 Pole: 20317 3 Pole: 20318
  • Non-Spring Reinforced Pressure Plate (Cu #10-14)
  • 1 Pole: 20321 2 Pole: 20322 3 Pole: 20323
  • Spring Reinforced Pressure Plate (Cu #10-14)
  • 1 Pole: 20326 2 Pole: 20327 3 Pole: 20328

  • Fuse Reducers
  • 60 Amp to 30 Amp: 632
  • 100 Amp to 30 Amp: 132
Data Sheet
