A2K225R

$236.59
Out of stock
SKU
A2K225R

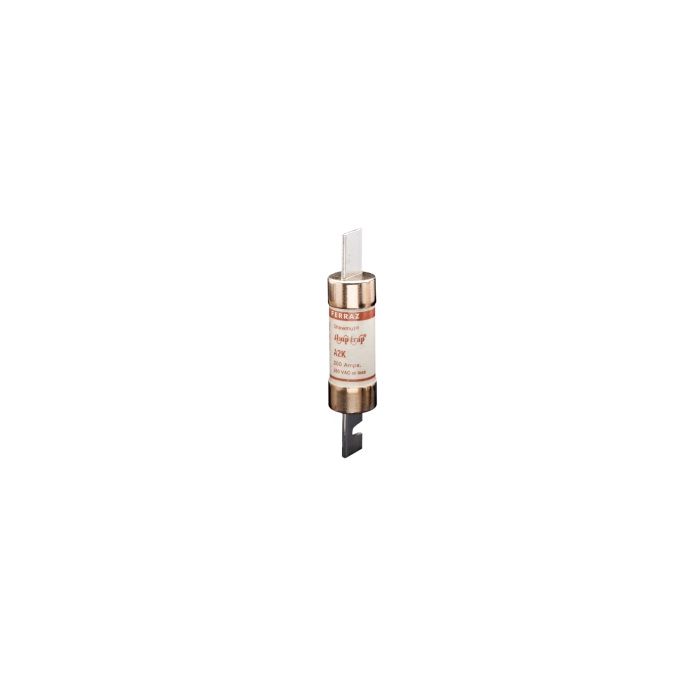

A2K 225 Amp, 250V, Class RK1, Ferraz A2K225R, A2K 225A | aka: Mersen A2K225R, Ferraz Shawmut A2K225R, UPC: 782001915322
Allfuses.com is not an authorized distributor of Ferraz Shawmut products

A2K 225 Amp, 250V, Class RK1, Ferraz A2K225R, A2K 225A | aka: Mersen A2K225R, Ferraz Shawmut A2K225R, UPC: 782001915322


Description:

  • 225 Amps, 250 Volts AC
  • UL Class RK1 Fuse
  • Fast Acting
  • Interrupting Rating: 200kAIC
  • Physical Size: 2 1/16" x 8 5/8"
  • Current Limiting
  • Rejection Style
  • AC Voltage Rating: 250
  • DC Voltage Rating: 250
  • AC Interrupting Rating: 200,000 AIC
  • DC Interrupting Rating: 20,000 AIC
  • UL listed to standard 248-12 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.12

  • Related Products:

  • Fuse Blocks
  • Box Side Clip (Al/Cu 1000 - 250kcmil)
  • 3 Pole: 24033R

  • Fuse Reducers
  • 600 Amp to 400 Amp: R642
Data Sheet
